Indo Furnaces (IAM)

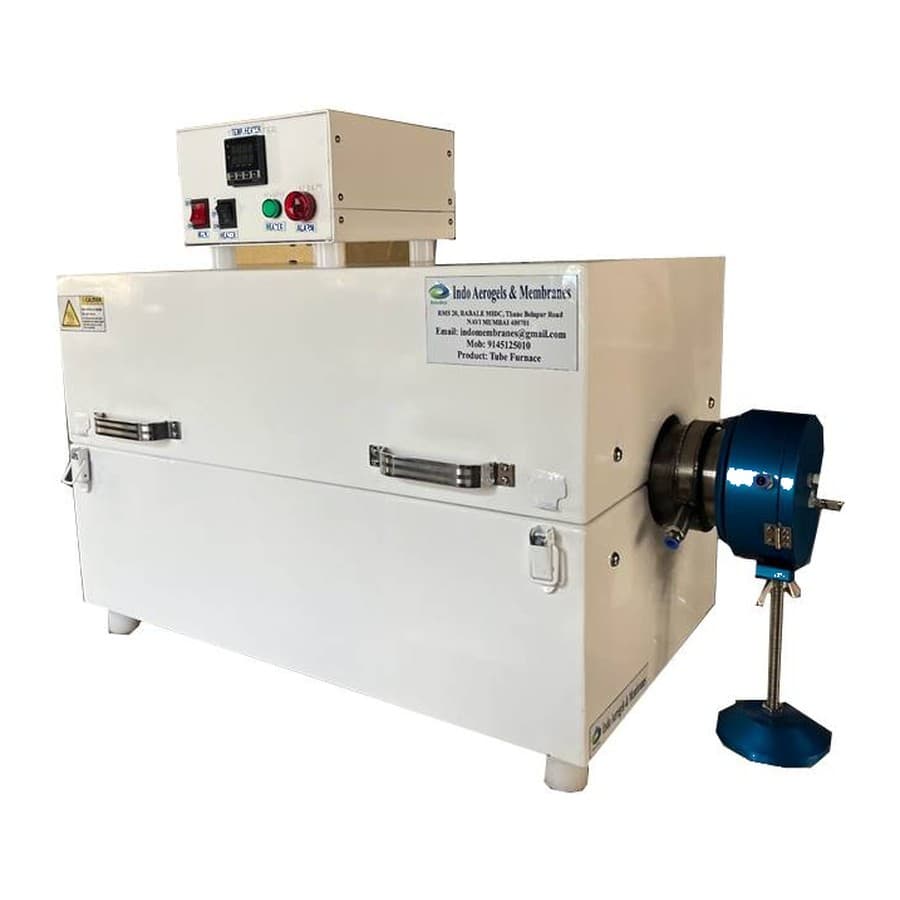

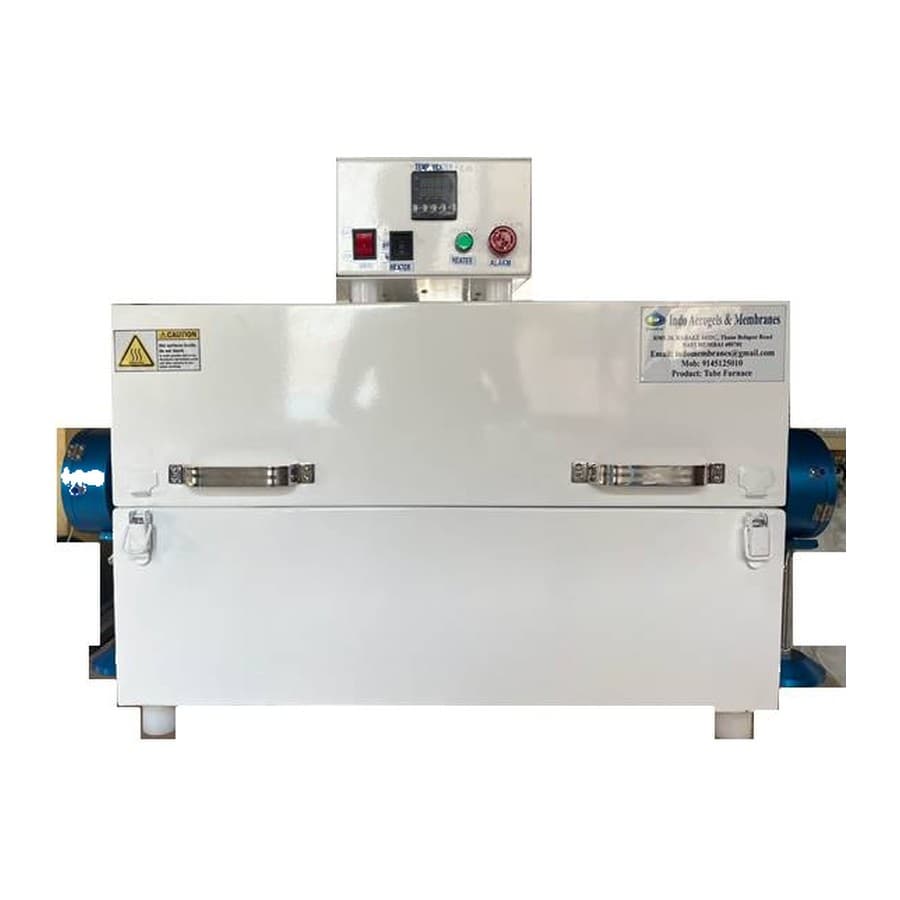

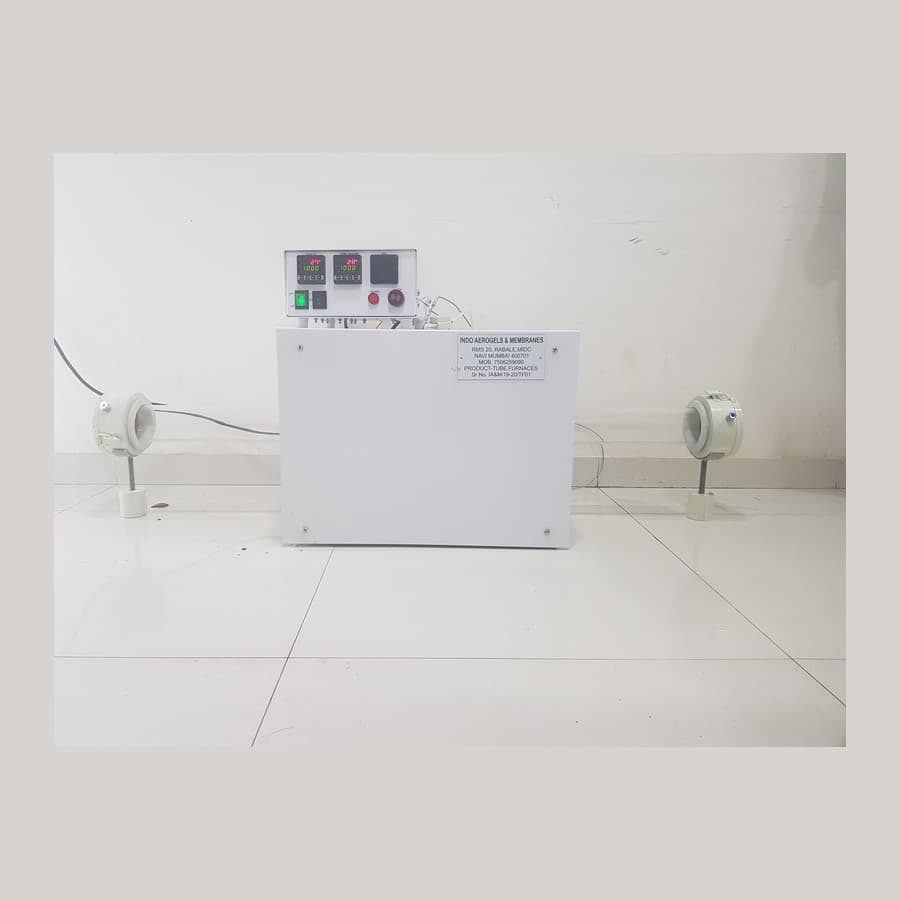

Box Type Tube Furnace
PID controlled tube furnace with inert gas purging system
Max temperature
1800 °C
Indo Furnaces (IAM) offers a broad selection of tube furnaces in convenient styles, sizes and temperature ranges for laboratory use. This line has different sizes, vacuum/inert gas medium heating, and split type or box type furnaces, all designed to provide convenient furnaces for laboratory procedures that must be performed under vacuum, inert gas or in air at elevated temperatures.
Many of these tube furnaces are offered with ceramic/quartz tubes with inert gas purging arrangements at both ends of the tube, with fittings on silicon rubber with cooling arrangement. These can be supplied with quartz/ceramic boats to keep samples.
Source: Tube Furnace Catalogue. The final responsibility for selecting a reactor or pressure vessel that is suitable for the intended use rests with the user.
Reference
Specifications
Model-wise data exactly as printed in the catalogue. Scroll the table sideways on a narrow screen.
| Model number | Indo-12S | Indo-12F | Indo-18S | Indo-24F | Indo-24S | Indo-36F |
|---|---|---|---|---|---|---|
| Heating length | 12 in | 12 in | 18 in | 24 in | 24 in | 36 in |
| Wattage | 1,300 W | 2,600 W | 3,000 W | 3,400 W | 4,710 W | 6,194 W |
| Voltage | 230 V | 230 V | 240 V | 240 V | 240 V | 240 V |
| Overall dimension | 40 × 30.5 × 43 cm | 40 × 30.5 × 43 cm | 53 × 48 × 43 cm | 53 × 48 × 43 cm | 65 × 48 × 43 cm | 105 × 48 × 43 cm |
| Bore diameter | 2.5, 5, 7.5 cm | |||||
