TD Series
PTFE Lined Digestion Vessels, 23–1000 mL
Screw cap and split ring digestion vessels, 120 bar at 200 °C
Capacity
23 mL – 1 L
Max pressure
120 bar
Max temperature
200 °C

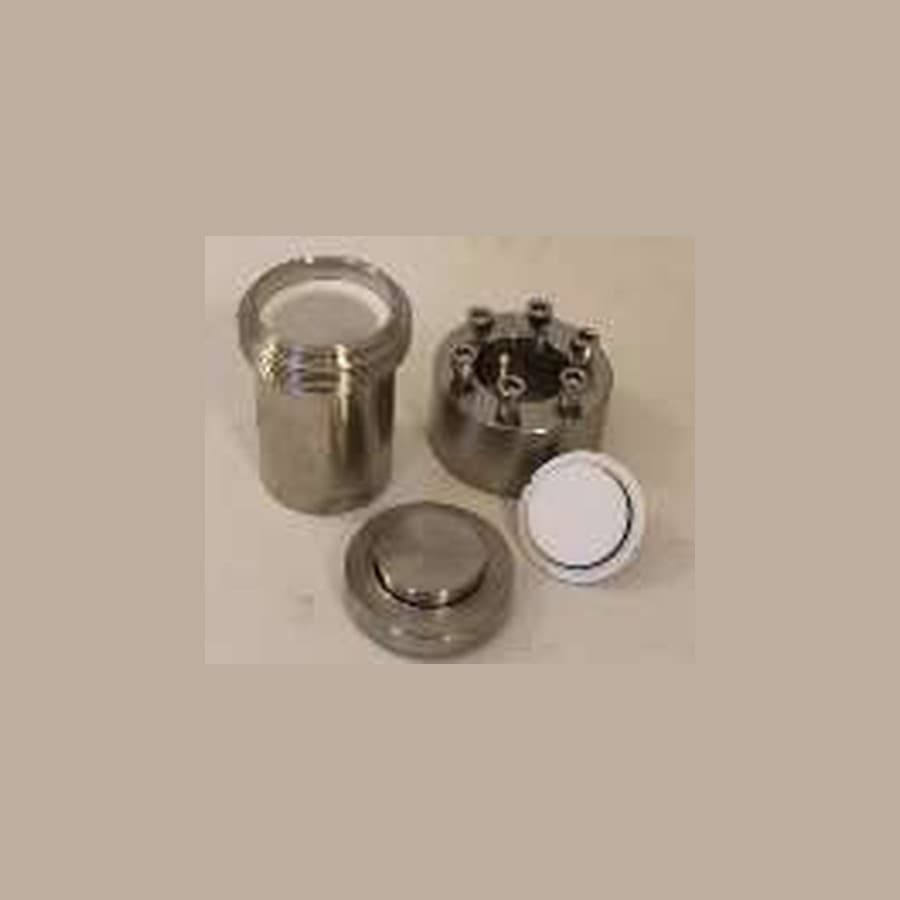

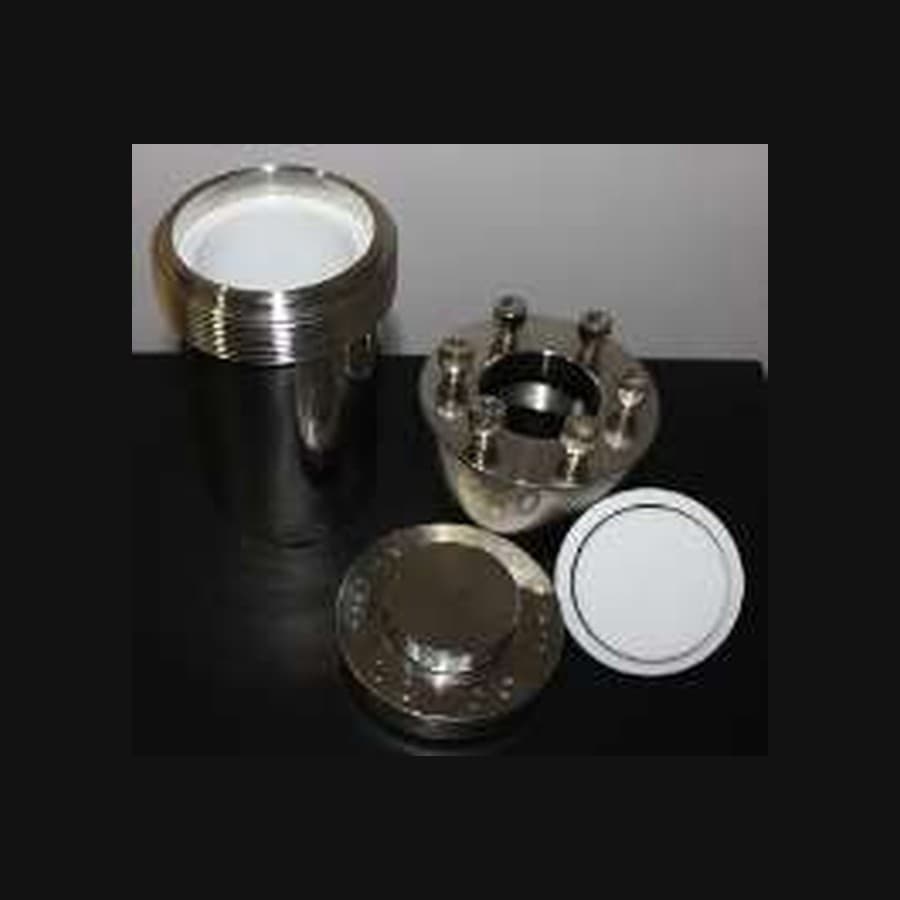

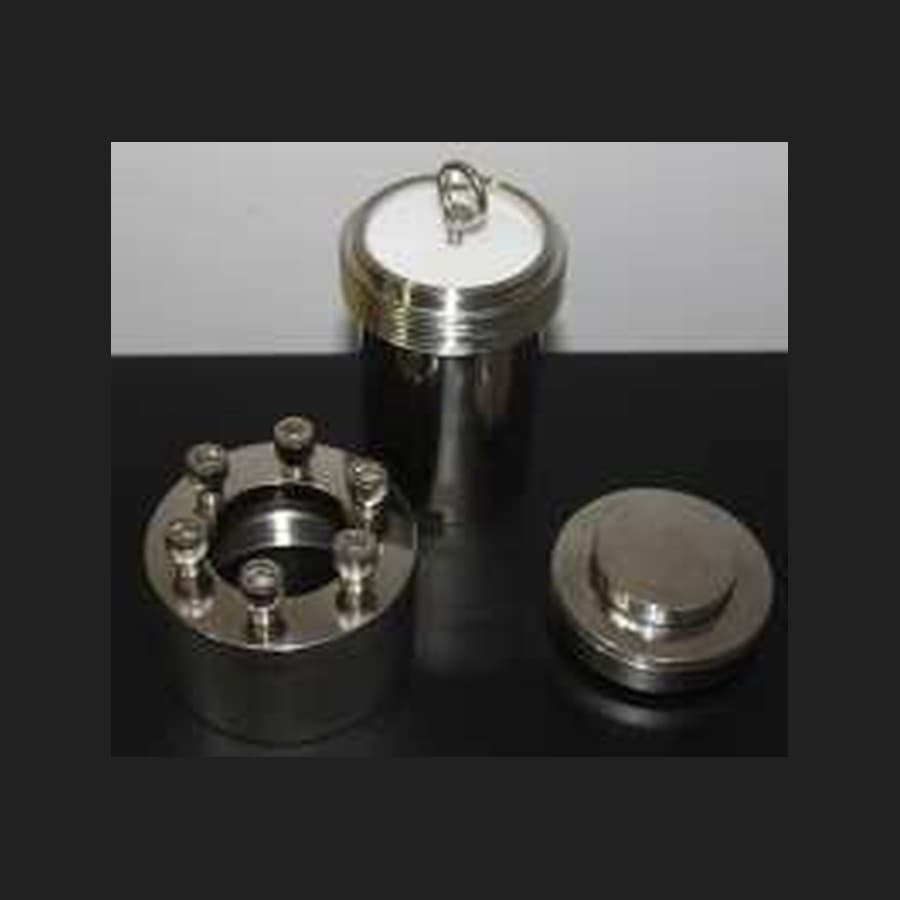

PTFE lined non-stirred digestion vessels for hydrothermal work, rated 1800 psig (120 bar) at 200 °C.

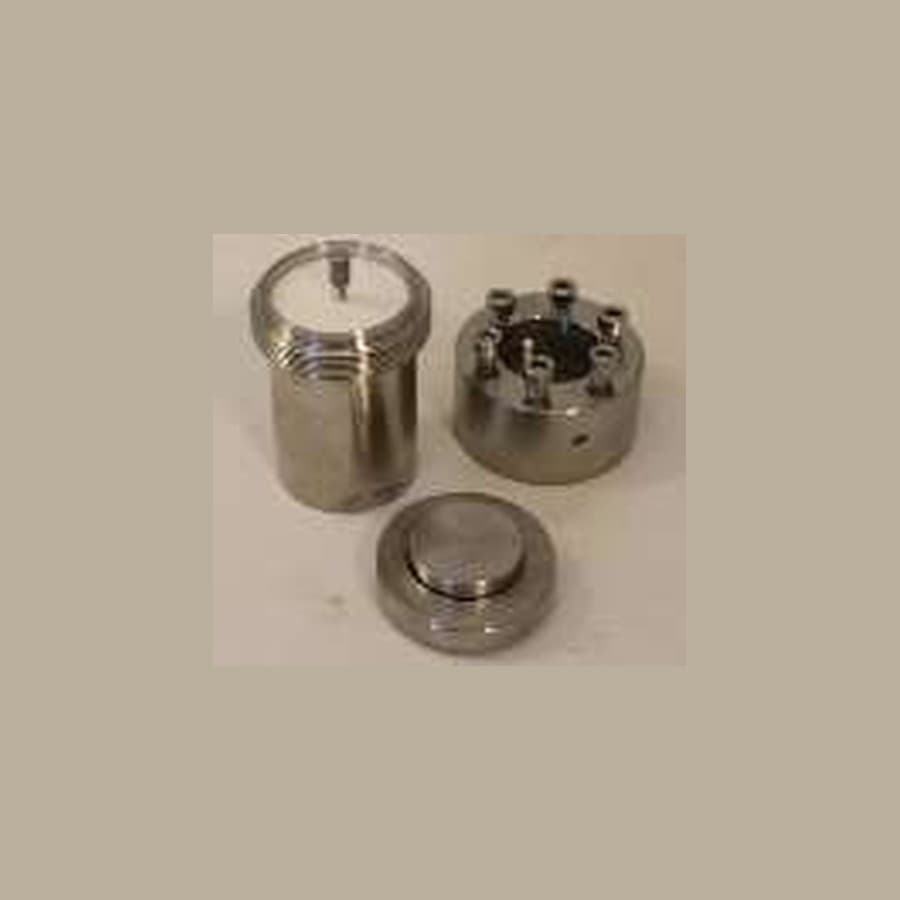

The digestor can also be used as an SS316 hydrothermal vessel without the PTFE cup and O-ring.
Source: Catalogue Indo Non Stirred Reactors. The final responsibility for selecting a reactor or pressure vessel that is suitable for the intended use rests with the user.
Construction
Design features

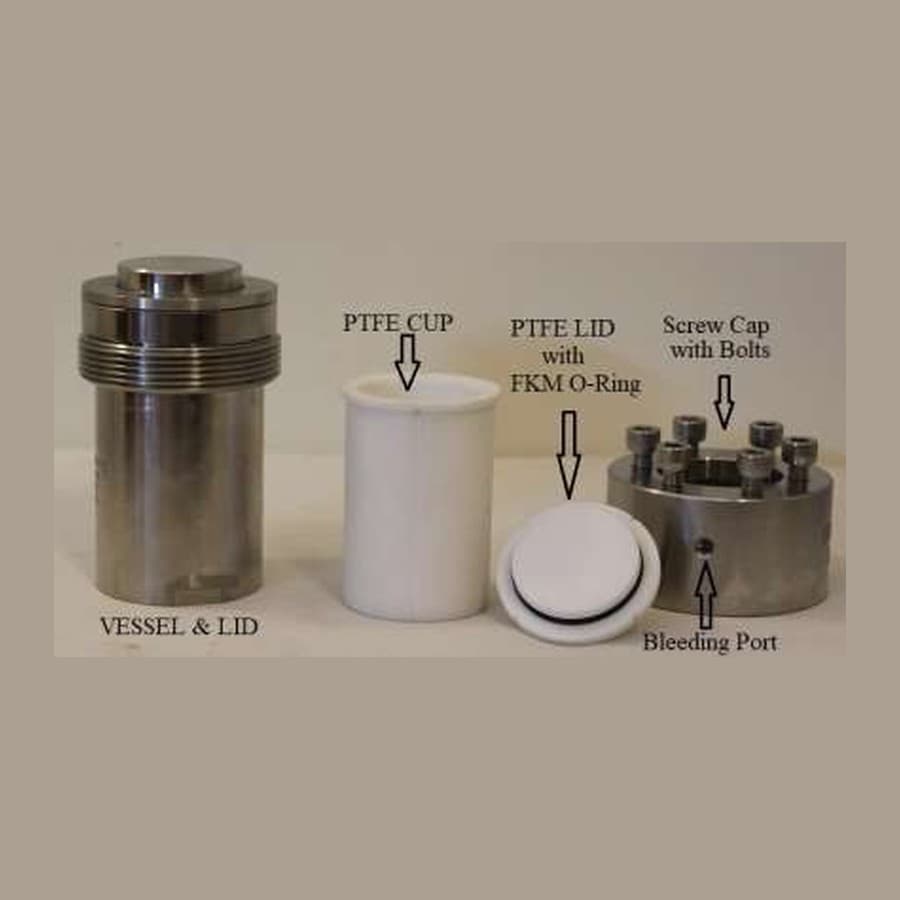

The lid is provided with a groove to use a PTFE gasket. This gasket is not used when the PTFE lid and O-ring are used; the PTFE gasket will provide pressure sealing.
Two bleeding ports are provided to avoid bursting of the vessel in a hot air oven — vapours leaking from the lid or O-ring gradually emit from the bleeding port instead of releasing suddenly.
Reference
Specifications
Model-wise data exactly as printed in the catalogue. Scroll the table sideways on a narrow screen.
| Model number | TD1020 | TD1322 | TD1345 | TD2234 | TD2543 | TD2543 | TD4057 |
|---|---|---|---|---|---|---|---|
| Size | 23 mL | 50 mL | 100 mL | 200 mL | 350 mL | 500 mL | 1000 mL |
| Maximum pressure | 1800 psig (120 bar) | ||||||
| Maximum temperature | 200 °C | ||||||

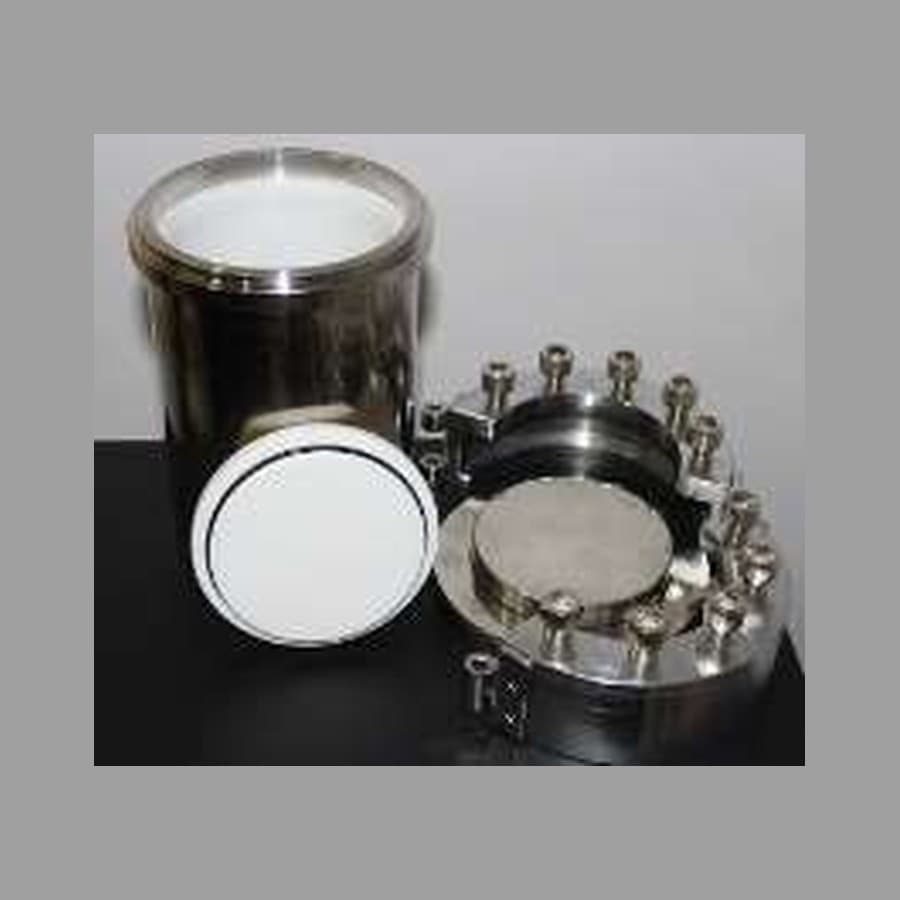

| Closure | Screw cap | Screw cap | Screw cap | Screw cap | Screw cap | Screw cap | Split ring |
| Closure OD | 64 mm | 80 mm | 80 mm | 100 mm | 110 mm | 110 mm | 155 mm |
| Vessel height | 115 mm | 117.5 mm | 172.5 mm | 147.5 mm | 182.5 mm | — | 218 mm |
| Vessel outer dia. | 45 mm | 55 mm | 55 mm | 75 mm | 88 mm | 88 mm | 126 mm |
| Vessel internal dia. | 34 mm | 45 mm | 45 mm | 65 mm | 75 mm | 75 mm | 110 mm |
| PTFE liner internal dia. | 24 mm | 35 mm | 35 mm | 55 mm | 65 mm | 65 mm | 100 mm |
| PTFE liner depth | 55 mm | 55 mm | 110 mm | 85 mm | 110 mm | — | 145 mm |
| O-ring AS568 | 118 ID 7/8" | 124 ID 1.25" | 124 ID 1.25" | 136 2" 3/32" | 142 2-3/8" | 142 CS 0.103" | 154 3.75" |
| PTFE gasket | Optional | ||||||
| Compression bolts | Six | Six | Six | Six | Six | Six | Ten |
