Engineered to order
Custom Reactor Systems
Tell us the capacity, pressure, temperature and chemistry. We build the reactor around it.
Specify it
What can be configured
01
Vessel and closure
- Capacities from 25 mL to 5 L in the standard range, and larger on request
- Split ring, screw cap and high pressure cone closures
- PTFE, flexible graphite and nickel compression gaskets
- SS316L, Monel 400, Hastelloy C-276, Inconel 600 and titanium
02
Heating and cooling
- Ceramic band heaters for vessel diameters from 50 mm to 175 mm
- Aluminium block heaters, four 250 W cartridges, sealed for flame proof environments
- Welded jackets where explosion proof conditions are required
- Serpentine, spiral and single loop internal cooling coils with solenoid valve control
03

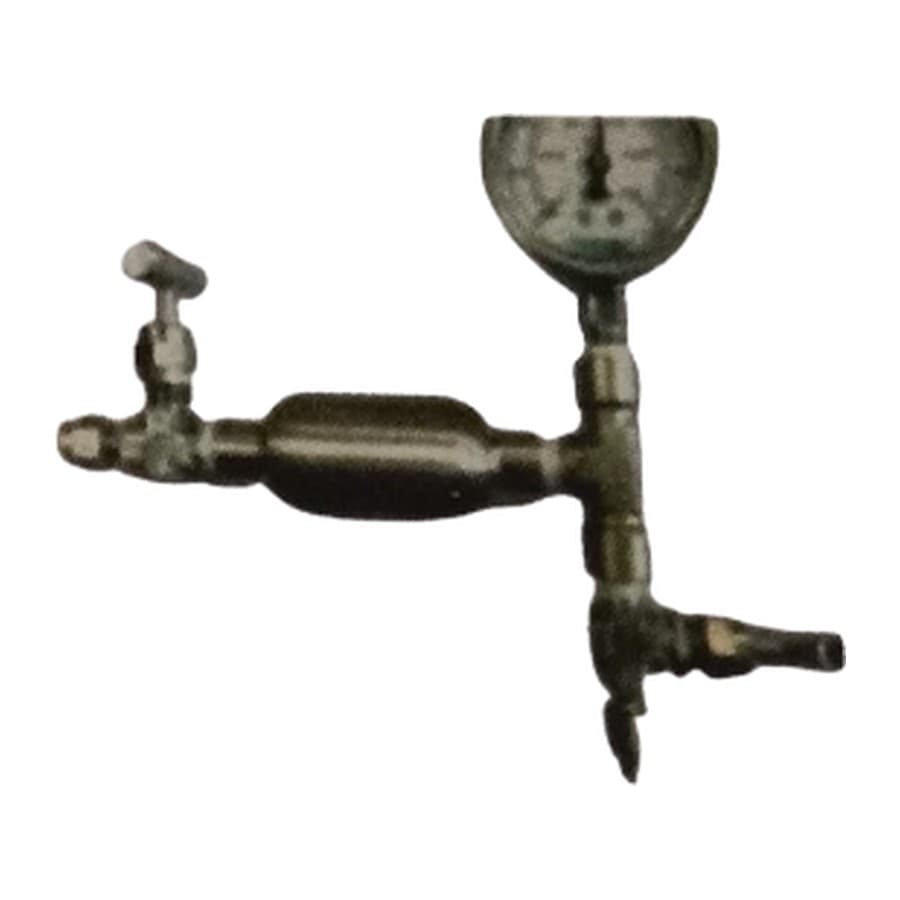

Feed, sampling and control
- Up to four mass flow controllers with bypass and purge lines
- High pressure liquid metering pumps for continuous flow operation
- Gas/liquid separators, condensers and back pressure regulators
- 4×48 PID control with ramp & soak, cascade control and RS485, or dedicated PLC
Enquiry
Specify your system
Send us the capacity, pressure, temperature, chemistry and any feed or sampling equipment you need. Your enquiry goes straight to our engineers.

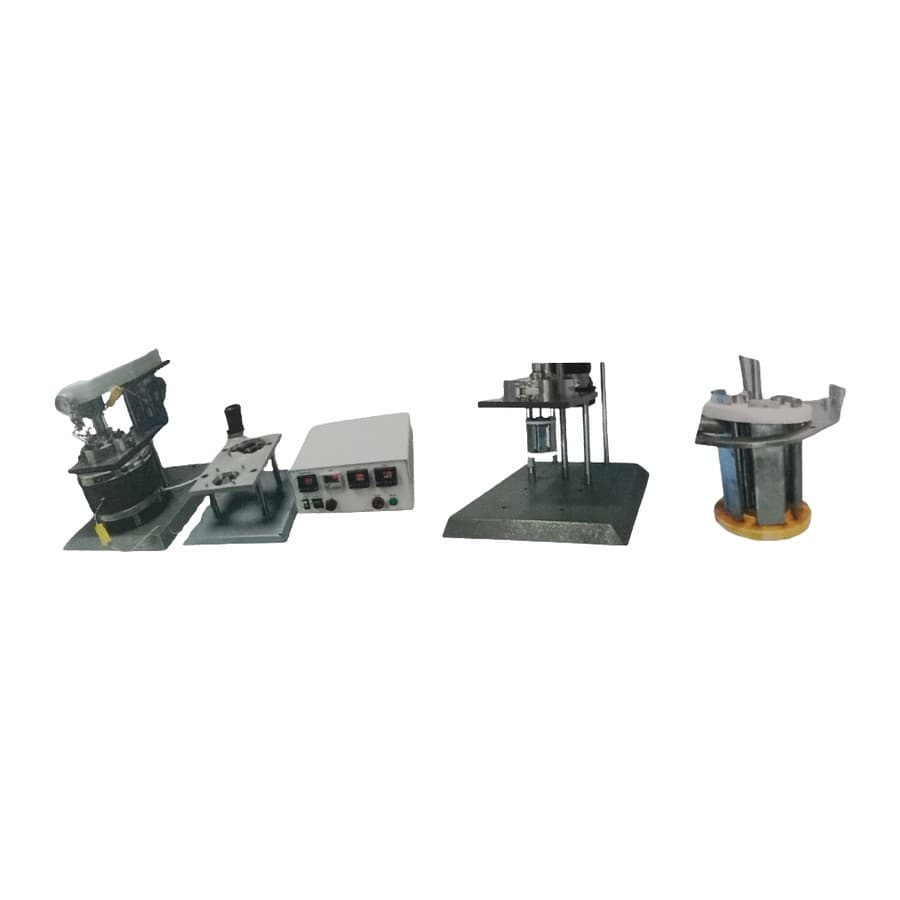

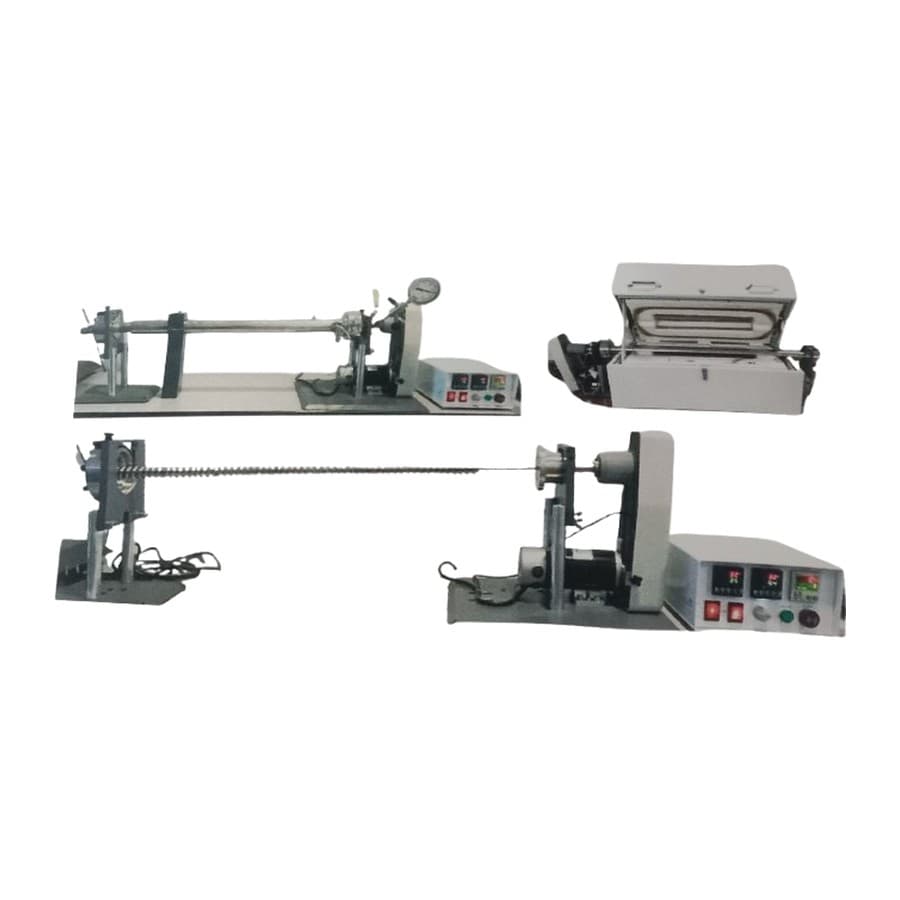

Reference builds
