NS Series
Non-Stirred Pressure Vessels, 50–2000 mL
Split-ring closure pressure vessels, 200 bar at 350 °C
Capacity
50 mL – 2 L
Max pressure
200 bar
Max temperature
350 °C
Indo offers a broad selection of non-stirred pressure vessels in convenient styles, sizes and pressure ranges for laboratory use. This line has different sizes, temperature and pressure combinations, with split ring or screw cap closure.

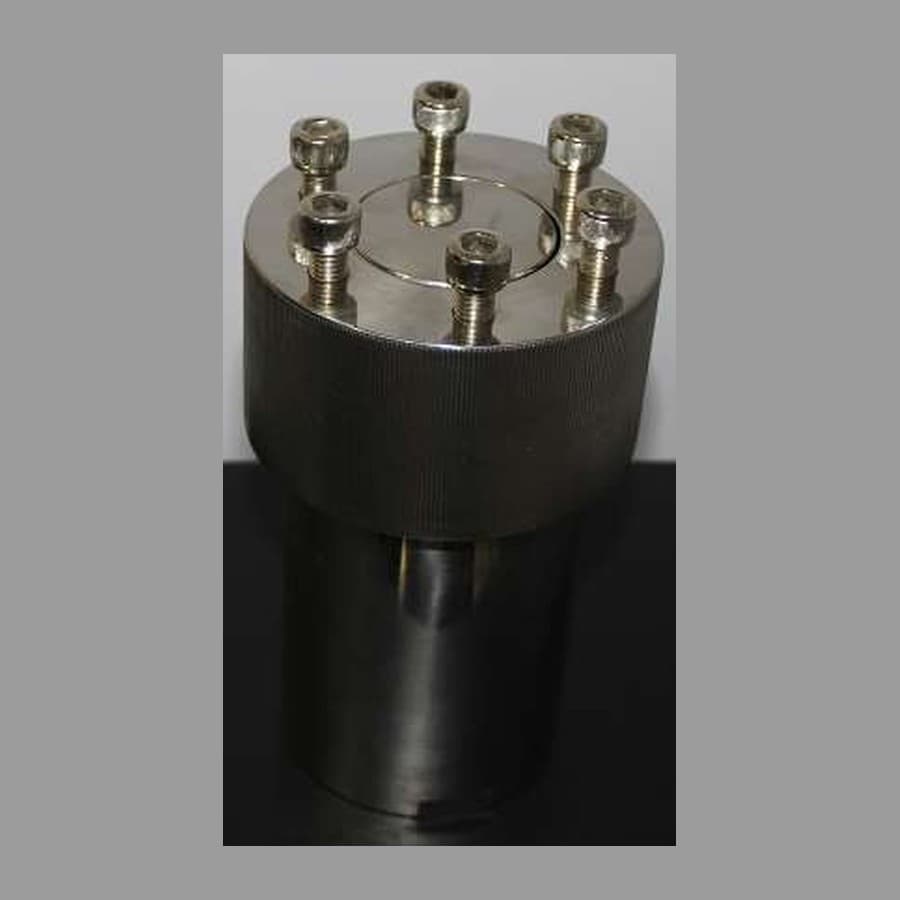

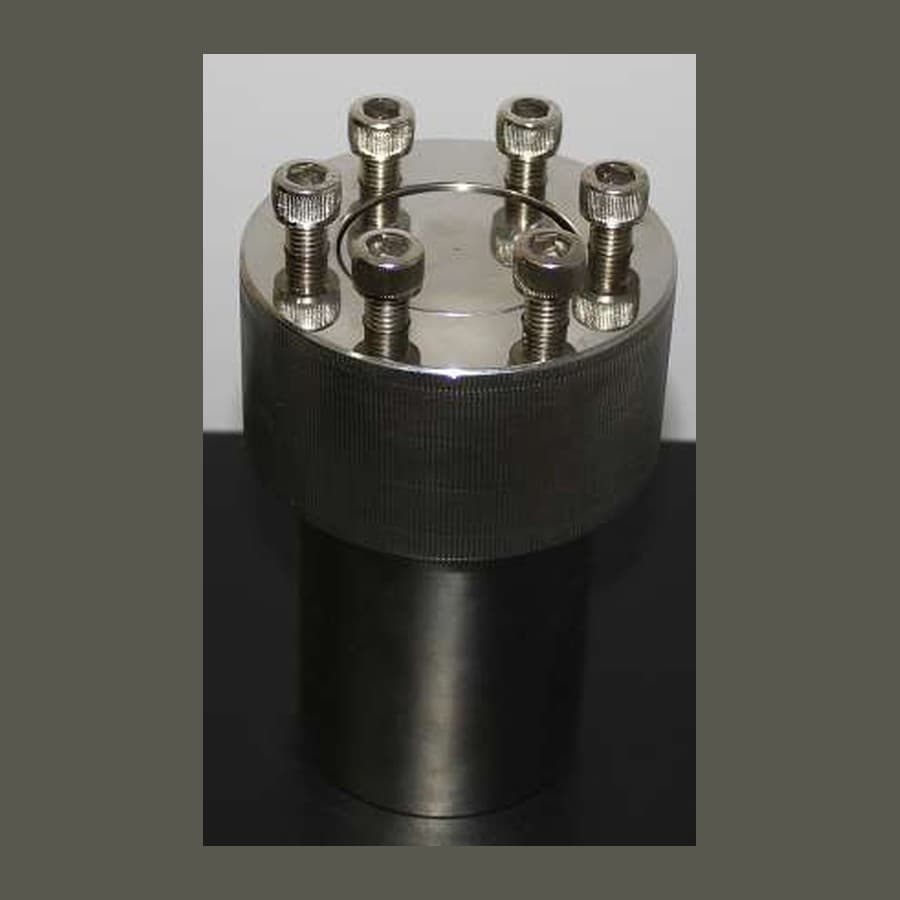

Many of these non-stirred vessels are offered with a blank head with no port or fittings. These can be supplied with a PTFE liner and cap to be used as a hydrothermal vessel.
Source: Catalogue Indo Non Stirred Reactors. The final responsibility for selecting a reactor or pressure vessel that is suitable for the intended use rests with the user.
Construction
Design features

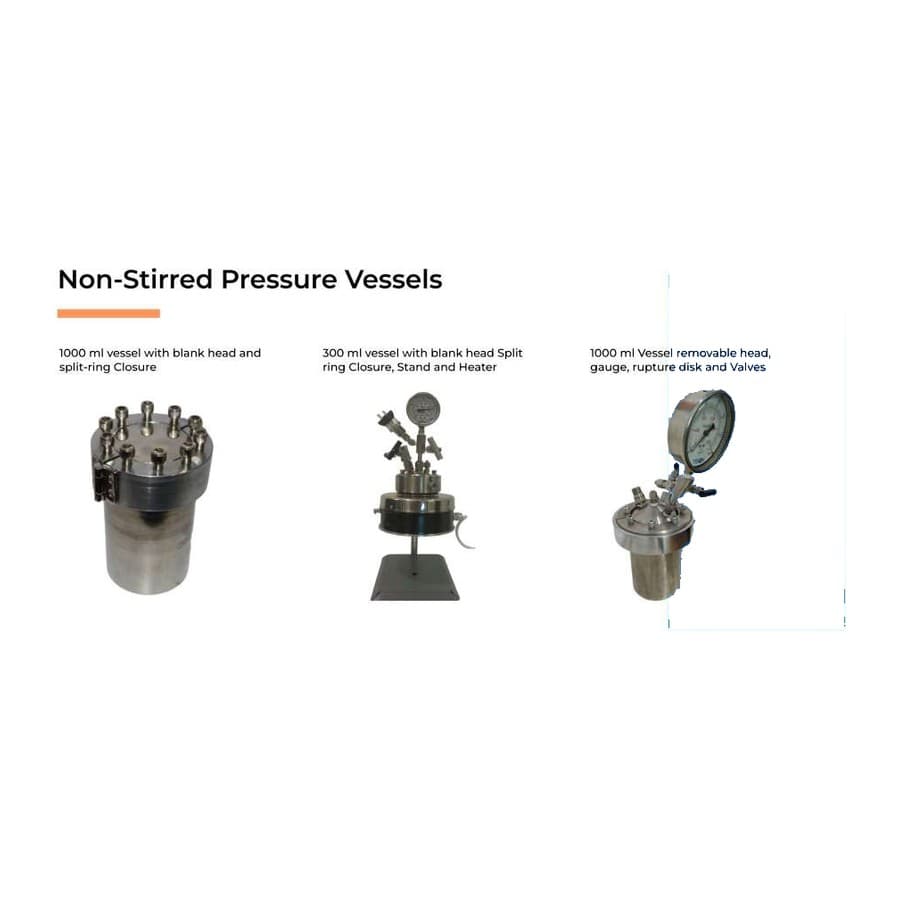

Available as 1000 ml vessel with blank head and split-ring closure; 300 ml vessel with blank head, split ring closure, stand and heater; 1000 ml vessel with removable head, gauge, rupture disk and valves.
Users who take delivery of vessels without safety relief devices installed must also take responsibility for installing adequate protective devices before the vessel is placed in service.
The user must check the vapour pressure at operating temperature to ensure that operating conditions are within safety limits.
Reference
Specifications
Model-wise data exactly as printed in the catalogue. Scroll the table sideways on a narrow screen.
| Model number | NS1323 | NS1346 | NS2520 | NS2540 | NS3045 | NS4050 | NS40100 |
|---|---|---|---|---|---|---|---|
| Size | 50 mL | 100 mL | 160 mL | 300 mL | 500 mL | 1000 mL | 2000 mL |
| Maximum pressure | 3000 psig (200 bar) | ||||||
| Maximum temperature | 350 °C | ||||||
| Temperature sensor | Type K thermocouple | ||||||
| Vessel internal dia. | 34 mm | 34 mm | 64 mm | 64 mm | 76 mm | 100 mm | 100 mm |
| Vessel internal depth | 57 mm | 115 mm | 50 mm | 100 mm | 115 mm | 130 mm | 270 mm |
| Closure | Split ring with compression bolts, PTFE gasket | ||||||
| Valves | Swagelok 1/8" NPT, outlet 0.25 inch tube adaptor — gas inlet, liquid sampling, gas vent | ||||||
| Pressure gauge | 0–3000 psig / 200 bar, 100 mm dia. | ||||||
